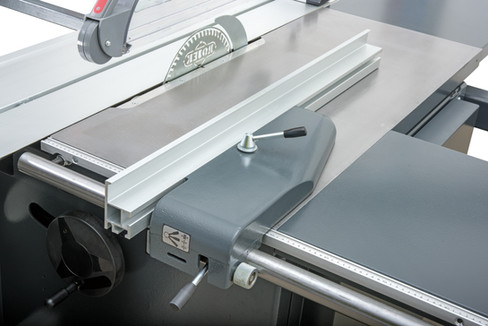

Panel saw PK 400A
✔ Born in Czech Republic
+ Precision and Quality: Ensures high precision and superior wood processing quality.
+ Robust and Durable: Designed for longevity and resilience, suitable for intensive industrial use.
+ Ease of Use: Simple operation and low maintenance needs enhance productivity.
Panel saw PK 400A
Small but mighty. This is an accurate description of this handy tool, which has undergone a series of technical innovations. We put great care into its design, and its high-quality craftsmanship reliably places this saw among the best in its class.
Machine details
Technical data
Parameter | Value |
Motor power | 7.5 kW / S6 - 3f |
Blade rotation speed | 4400 rpm |
Equipment on request
Outrigger roller
Supporting profile of the frame: 1,400 mm
Short tilting fence: 800 mm
Eccentric wood presser
DADO modification (max. diameter/width): 250/20 mm
Table extension
Push lever for sliding table
Ripping stop
Precise angle adjustment: 5°, 10°, 15°, 20°, 22.5°, 30°, 40°, 45°
Scoring unit with fine adjustment and separate motor: 0.75 kW/S6
Aluminium sliding table on hardened and polished bars CV 360T (length 2.6 m)
Supporting frame: 870 × 630 mm (complete)
Width of cut: 1,050 mm
Digital indication of rip fence: ELGO
Digital indication of cross-cutting fence: ELGO
Packing on a wooden pallet
Packing in a wooden case
