Panel saw PF 400
✔ Born in Czech Republic
+ Precision and Quality: Ensures high precision and superior wood processing quality.
+ Robust and Durable: Designed for longevity and resilience, suitable for intensive industrial use.
+ Ease of Use: Simple operation and low maintenance needs enhance productivity.
Panel saw PF 400
In its standard configuration, it is equipped with a formatting table mounted directly onto the machined surfaces of the machine frame, featuring a highly precise and rigid support system on hardened CV 360T rods. An optional upgrade allows the machine to be fitted with a formatting table of a multi-chamber, highly rigid CV 400T construction. This precise and robust design features support on steel rods, with table dimensions of 400 x 3200 mm.
Machine details
Technical data
Parameter | Value |
Motor power | 5.3 (7.5) kW / S6 - 3f |
Scoring motor power | 1 kW / S6 |
Equipment on request
Outrigger roller
Supporting profile of the frame 1400 mm
Short tilting fence 800 mm
Eccentric woodpresser
DADO modification max. diameter/width 250/20 mm
Support of sliding table
Push lever for sliding table
Ripping stop
Precise angle adjustment 5°, 10°, 15°, 20°, 22.5°, 30°, 40°, 45°
Width of cut 1500 mm

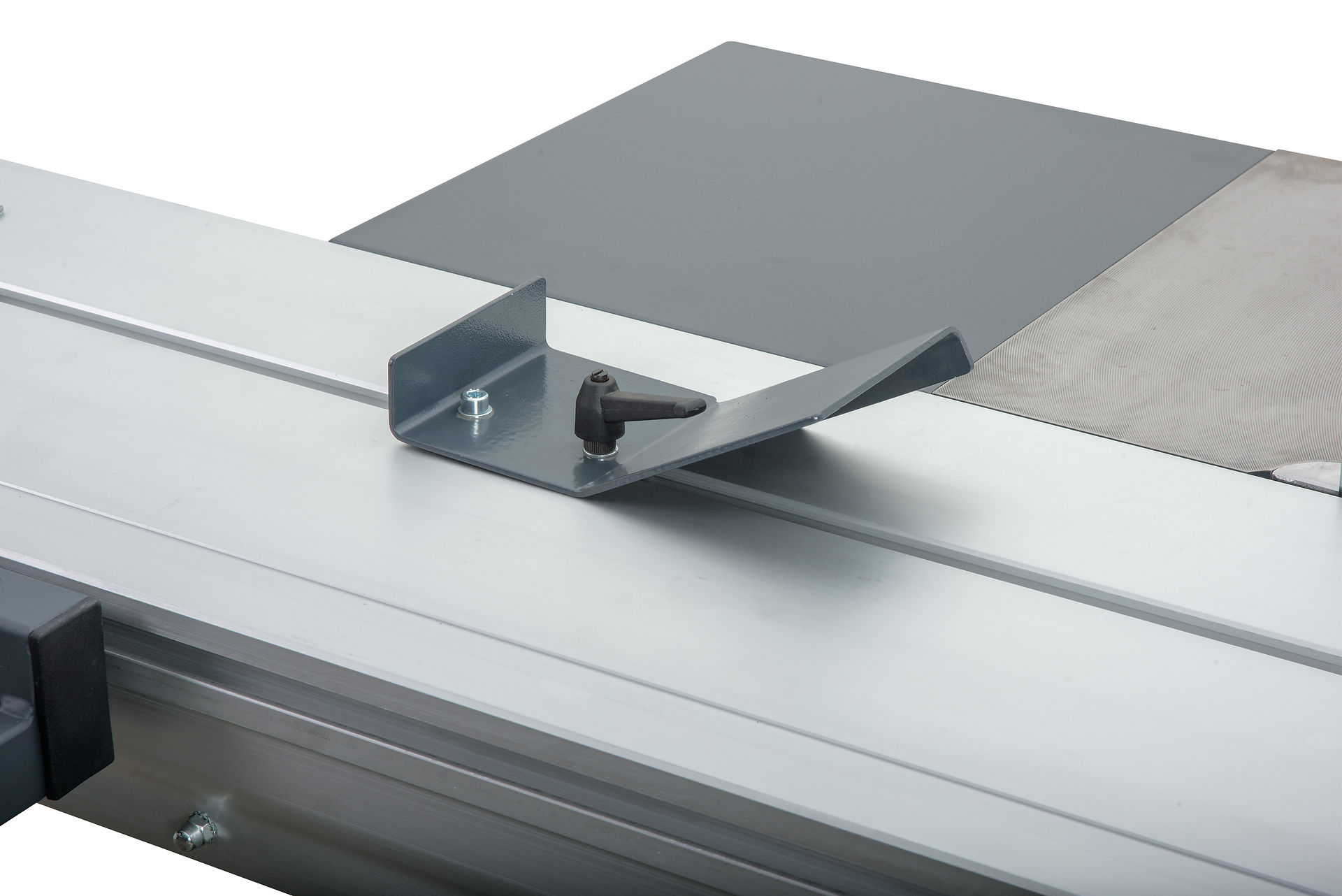

Aluminium sliding table on hardened and polished bars CV 360T length 2.8 m
Main motor power 7.5 kW/56 - 3f
Digital indication of rip fence ELGO
Digital indication of cross-cutting fence ELGO
Packing on wooden pallet
Packing in wooden case /not stackable for upper control panel/
Package: Aluminium sliding table on hardened and polished bars CV 400T length 3.2 m with control by handle and upper control panel
